Note: This is a floor model and has been on a few test rides.
Born on Gravel / Raised on Pavement

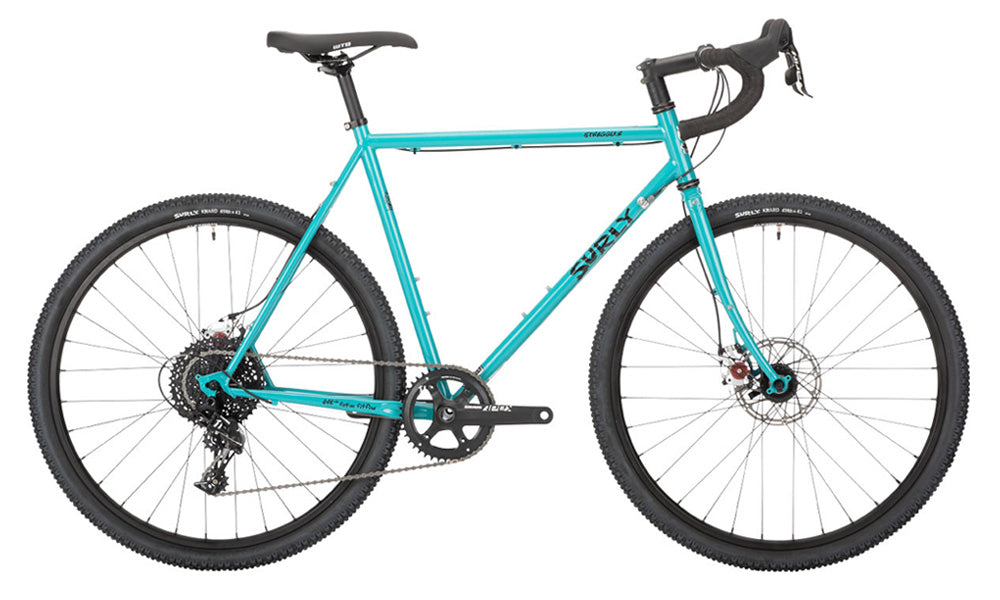

Straggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender. It’s a ‘rough road’ road bike, a cyclocross bike with no pretense about racing, a utilitarian townie, a light-duty touring bike and an all-weather commuter. It’s a steel gravel bicycle that thrives on the road. Think of it as a “mountain biker’s road bike.” If you only have room for one bike in your life, Straggler can (and should) be your one and only.
Straggler’s capabilities go well beyond asphalt. It also lends itself well to light touring setups. We're talking frame bags, seat bags, and "credit card touring” rather than full-blown touring. Straggler also handles our 8- and 24-Pack Racks well, so you have some heavier-duty loading options.
Build
Frameset
Frame Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing.
Fork Surly Straggler, 4130 CroMoly, disc only, lugged and brazed.
Seatpost Clamp Surly Stainless, 30.0mm
Components
Headset Cane Creek 40, 1-1/8"
Brakes SRAM Avid BB7 Road, 160 rotors
Brake Levers SRAM Apex
Shifters SRAM Apex 1x11
Stem 31.8, 4-bolt
Handlebar Salsa Cowbell
Grip/Tape Black Cork
Saddle WTB Volt 142
Seatpost Promax SP-2016 offset on 54-64cm frames, 27.2 x 350mm
Drivetrain
Crankset SRAM FC Apex 42t
Bottom Bracket SRAM GXP
Front Derailleur N/A
Rear Derailleur SRAM Apex 1x11
Cog or Cassette SunRace CSMS7, 11–42t, 11-speed
Chain CNP1110
Wheels
Front Hub Novatec, 6 bolt Disc, 32H, QR
Rear Hub Novatec, 6 bolt Disc, 32H, QR
Rims Alex Adventurer 2, tubeless ready
Tires Surly Knard 700c x 41mm, 33 tpi & 650b x 41mm, 33 tpi
650B
| SIZE | 38cm | 42cm | 46cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|---|---|
| Reach | 371.0 | 369.0 | 371.0 | 383.0 | 386.0 | 392.0 | 402.0 | 410.0 |
| Stack | 483.0 | 498.0 | 511.0 | 523.0 | 534.0 | 548.0 | 563.0 | 586.0 |
| Head Tube Angle | 69.5° | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° | 72.0° |
| Head Tube Length | 85.0 | 100.0 | 110.0 | 120.0 | 130.0 | 145.0 | 160.0 | 185.0 |
| Seat Tube Length | 380.0 | 420.0 | 460.0 | 500.0 | 520.0 | 540.0 | 560.0 | 580.0 |
| BB Drop | 54.0 | 54.0 | 54.0 | 54.0 | 54.0 | 54.0 | 54.0 | 54.0 |
| Wheelbase | 980.0 | 978.0 | 977.0 | 988.0 | 990.0 | 1005.0 | 1020.0 | 1035.0 |
| Chainstay Length | 405.0 | 405.0 | 405.0 | 405.0 | 405.0 | 410.0 | 410.0 | 410.0 |
| Top Tube Length, Actual | 484.4 | 495.1 | 508.0 | 529.7 | 545.9 | 561.8 | 578.3 | 591.8 |
| Top Tube Length, Effective | 500.0 | 510.0 | 520.0 | 535.0 | 550.0 | 565.0 | 580.0 | 595.0 |
| Seat Tube Angle | 75.5° | 74.5° | 74.0° | 74.0° | 73.0° | 72.5° | 72.5° | 72.5° |
| Standover Height | 704.0 | 726.0 | 751.0 | 776.0 | 789.0 | 806.0 | 822.0 | 844.0 |
| Stem Length | 60 | 60 | 70 | 80 | 100 | 100 | N/A | N/A |
| Stem Angle | 6° | 6° | 6° | 6° | 6° | 6° | N/A° | N/A° |
| Handlebar Width | 380 | 380 | 400 | 400 | 420 | 420 | N/A | N/A |
| Crank Length | 165 | 165 | 165 | 170 | 172.5 | 172.5 | N/A | N/A |
| Fork Length | 380.0 | 380.0 | 380.0 | 380.0 | 380.0 | 380.0 | 380.0 | 380.0 |
| Fork Rake | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
