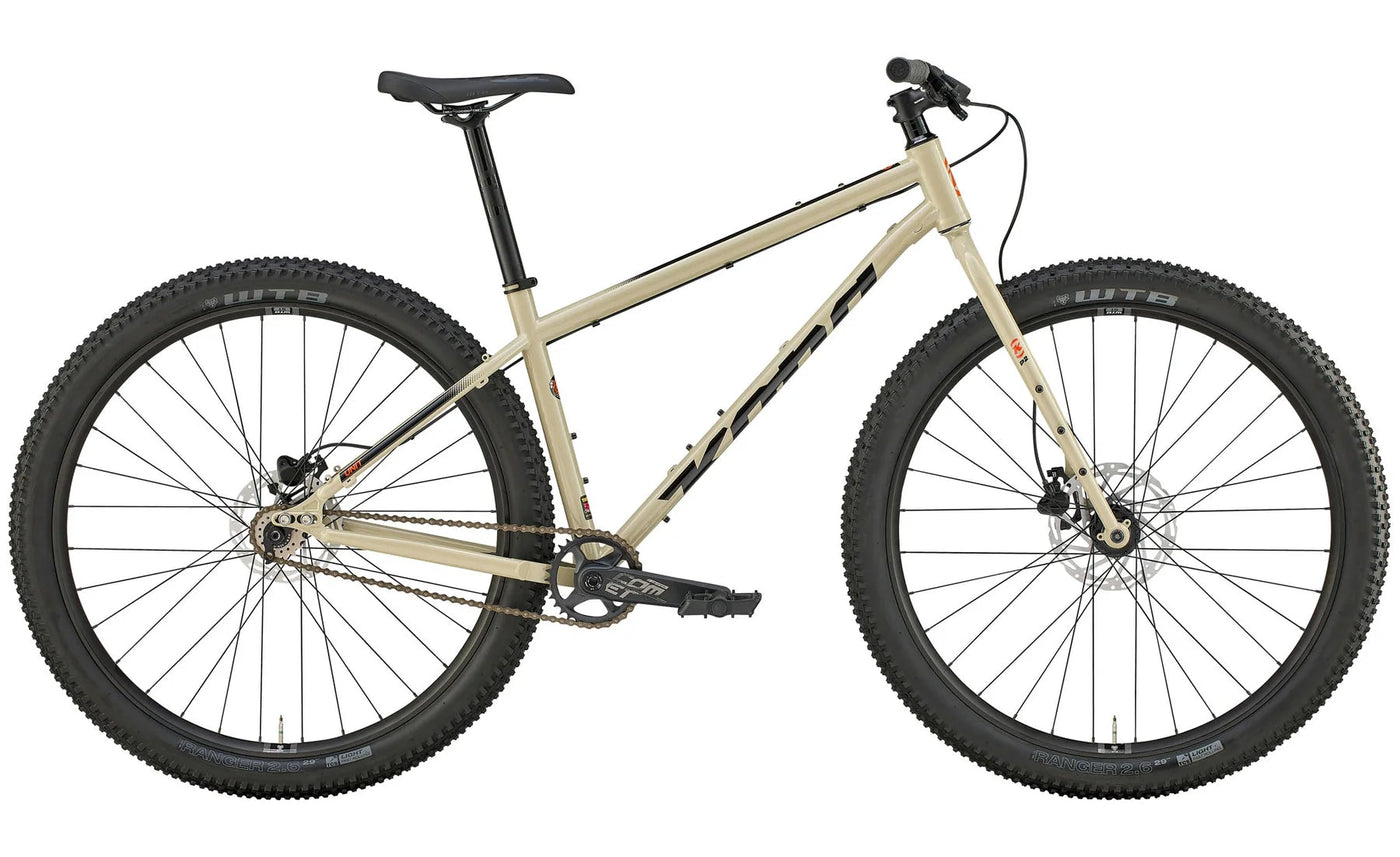

Unit X / 2022

Unit X / 2022

Regular price$1,599.00
/

Size

The Unit X has become a cult favorite among die-hard Kona fans. Maybe it’s the Cromoly frame. Maybe it’s the fact that it’s a bike packing monster, or its well-geared 12-speed drivetrain, or modular dropouts which give you the ability to run it as a single speed if that’s your thing. Maybe it’s because the rigid fork makes it that much more of a classic. We may never know why the Unit X is such a popular bike, but we can only guess it’s because it is one of the most practical machines in our lineup.



SPECIFICATIONS

FRAME MATERIAL Reynolds 520 Butted Cromoly
SIZES S, M, L, XL
REAR SHOCK n/a
FORK Kona Plus fork 110mm spacing
CRANKARMS Shimano Deore 12spd
CHAINRINGS 32t
B/B Shimano 73mm
PEDALS n/a
CHAIN Shimano Deore 12spd
CASSETTE Shimano Deore 10-51t 12spd
CHAINGUIDE n/a
F/D n/a
R/D Shimano Deore
SHIFTERS Shimano Deore 12spd
BRAKE CALIPERS Shimano MT410 Hydraulic
FRONT BRAKE ROTOR Shimano RT10 180mm (centerlock)
REAR BRAKE ROTOR Shimano RT10 160mm (centerlock)
BRAKE LEVERS Shimano MT410 Hydraulic
HEADSET TH ZST No.10
HANDLEBAR Kona XC/BC Riser
STEM Kona XC/BC
SEATPOST Kona Thumb w/Offset 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB Volt
FRONT HUB Shimano 110x15mm
REAR HUB Shimano 148x12mm
SPOKES Stainless Black 14g
RIMS WTB ST i30 2.0 TCS
FRONT TIRE WTB Ranger TCS 29x2.6"
REAR TIRE WTB Ranger TCS 29x2.6"
PAINT COLOR Gloss Metallic Dragonfly w/ Charcoal & Nimbus Decals

KONA Geometry



GEOMETRY (mm)

  SIZE S M L XL
1 ST LENGTH 370 420 470 530
2 TT LENGTH 582 610 637 675
3 REACH 425 450 475 510
4 STACK 588 597 606 615
5 STANDOVER 695 731 768 810
6 HT ANGLE 68.0 68.0 68.0 68.0
7 HT LENGTH 110 120 130 140
8 ST ANGLE 75.0 75.0 75.0 75.0
9 CS LENGTH 430 430 430 430
10 BB DROP 65 65 65 65
11 BB HEIGHT 310 310 310 310
12 WHEELBASE 1115 1144 1173 1211
13 FRONT CENTER 693 722 750 789
14 FORK LENGTH 470 470 470 470
15 FORK OFFSET 50 50 50 50

GEOMETRY(mm)

  SIZE 48 50 52 54 56 58
1 ST LENGTH 410 410 455 455 500 535
2 TT LENGTH 532 545 560 575 592 613
3 REACH 380 385 390 395 400 405
4 STACK 568 578 592 609 627 660
5 STANDOVER 735 739 773 781 827 851
6 HT ANGLE 69.5 69.5 69.5 69.5 69.5 69.5
7 HT LENGTH 115 125 140 160 180 215
8 ST ANGLE 75.0 74.5 74.0 73.5 73.0 72.5
9 CS LENGTH 445 445 445 445 445 445
10 BB DROP 74 74 74 72 72 72
11 BB HEIGHT 301 301 301 303 303 303
12 WHEELBASE 1062 1071 1081 1094 1106 1123
13 FRONT CENTER 628 636 647 658 670 688
14 FORK LENGTH 430 430 430 430 430 430
15 FORK OFFSET 55 55 55 55 55 55
