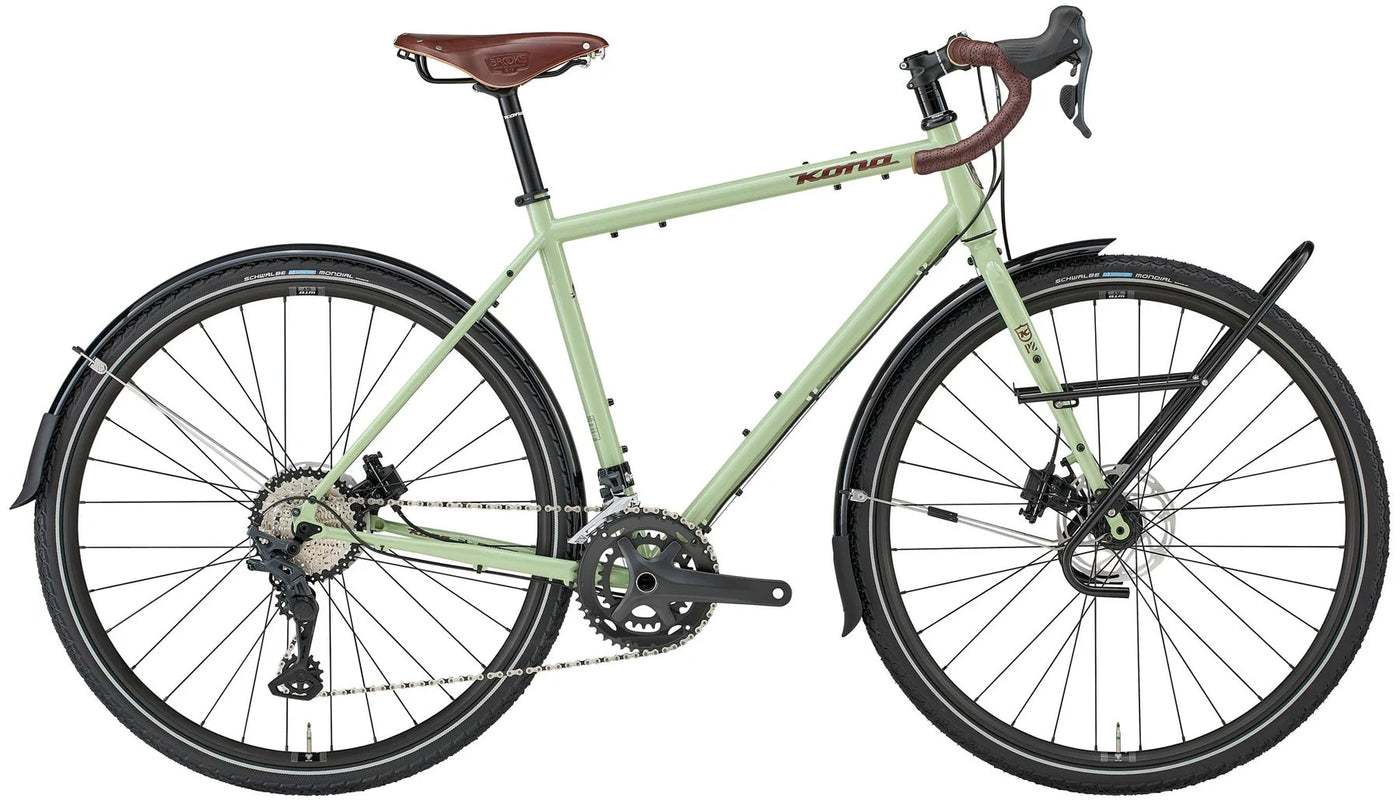

The Sutra is many things. It’s functional. It’s stylish. It’s incredibly versatile, and it comes ready for the long haul on the bike tour of your dreams. Our Kona Cromoly steel frame is outfitted with a Brooks saddle and microfiber bar tape, integrated shifter/brake levers, proper fenders and a real Tubus Tara Big Apple low-rider front rack. It’s a modern take on the classic touring bike. It’s a grocery getter that’s easy on the eyes. It’s the feeling of steel across pavement that reminds you why you love turning the cranks on long rides. Just like its name suggests it’s the perfect guide for your every ride.
SPECIFICATIONS
| FRAME MATERIAL | Kona Cromoly Butted |
| SIZES | 48, 50, 52, 54, 56, 58 |
| REAR SHOCK | n/a |
| FORK | Kona Project Two Cromoly Disc Touring |
| CRANKARMS | Shimano GRX 600 |
| CHAINRINGS | 30/46t |
| B/B | Shimano 68mm |
| PEDALS | n/a |
| CHAIN | Shimano Deore |
| CASSETTE | Shimano Deore 11-36t 10spd |
| CHAINGUIDE | n/a |
| F/D | Shimano GRX 400 |
| R/D | Shimano GRX 400 |
| SHIFTERS | Shimano Tiagra |
| BRAKE CALIPERS | TRP HDC711C Mechanical / Hydraulic |
| FRONT BRAKE ROTOR | TRP TR160mm |
| REAR BRAKE ROTOR | TRP TR160mm |
| BRAKE LEVERS | Shimano Tiagra |
| HEADSET | FSA No.1/No.10 |
| HANDLEBAR | Kona Road |
| STEM | Kona Road |
| SEATPOST | Kona Deluxe Thumb w/Offset 27.2mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Brooks Microfiber Brown |
| SADDLE | Brooks B17 Leather |
| FRONT HUB | Formula 100x12mm |
| REAR HUB | Formula 142x12mm |
| SPOKES | Stainless Black 14g |
| RIMS | WTB ST i23 TCS 2.0 |
| FRONT TIRE | Schwalbe Marathon Mondial 700x40c |
| REAR TIRE | Schwalbe Marathon Mondial 700x40c |
| PAINT COLOR | Satin Black w/ Gloss Metallic Bronze Decals |
| EXTRAS | Fenders w/ Mudflaps, Tubus Front Rack |
GEOMETRY (mm)
| SIZE | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST LENGTH | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT LENGTH | 523 | 538 | 555 | 571 | 588 | 606 |
| 3 | REACH | 375 | 380 | 385 | 390 | 395 | 400 |
| 4 | STACK | 551 | 570 | 591 | 610 | 632 | 650 |
| 5 | STANDOVER | 752 | 770 | 793 | 813 | 835 | 854 |
| 6 | HT ANGLE | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| 7 | HT LENGTH | 95 | 115 | 140 | 160 | 185 | 205 |
| 8 | ST ANGLE | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS LENGTH | 445 | 445 | 445 | 445 | 445 | 445 |
| 10 | BB DROP | 74 | 74 | 72 | 72 | 70 | 70 |
| 11 | BB HEIGHT | 281 | 281 | 283 | 283 | 285 | 285 |
| 12 | WHEELBASE | 1035 | 1047 | 1061 | 1073 | 1086 | 1099 |
| 13 | FRONT CENTER | 601 | 613 | 626 | 638 | 651 | 663 |
| 14 | FORK LENGTH | 415 | 415 | 415 | 415 | 415 | 415 |
| 15 | FORK OFFSET | 50 | 50 | 50 | 50 | 50 | 50 |
